ตัวควบคุมการชาร์จแบตเตอรี่ แบบ PWM_20A 12/24V (SS-1220LN)
Solar Charge Controller 20A 12/24V 20A LCD Monitor
controller is a kind of intelligent solar controller, LCD display and fully 4-stage PWM charge management. Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.
Specification
| Model | 20A |
| Batt Voltage | 12V/24V auto |
| Charge Current | 20A |
| Discharge Current | 20A |
| Max Solar Input | <50V |
| Buck Charge | 14.5V |
| Float Charge | 13.7V |
| Discharge Stop | 10.7V |
| Discharge Reconnect | 12.6V |
| USB Output | 5V/0.8A |
| Self-Consume | <10mA |
| Control mode | PWM |
| Operating Temperature | -30~+60℃ |
| Size | 150*78*35mm |
| Weight | 150g |
Display Description

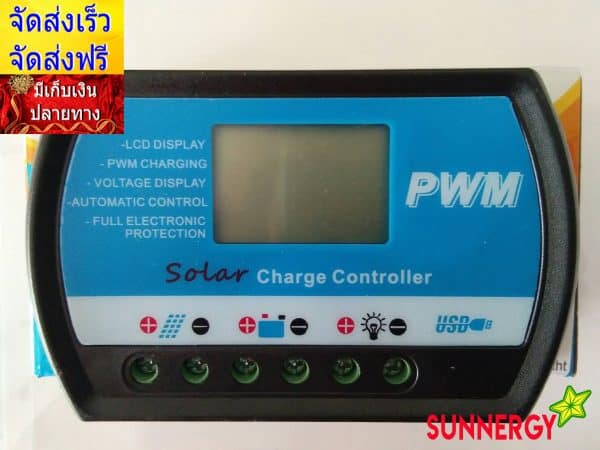

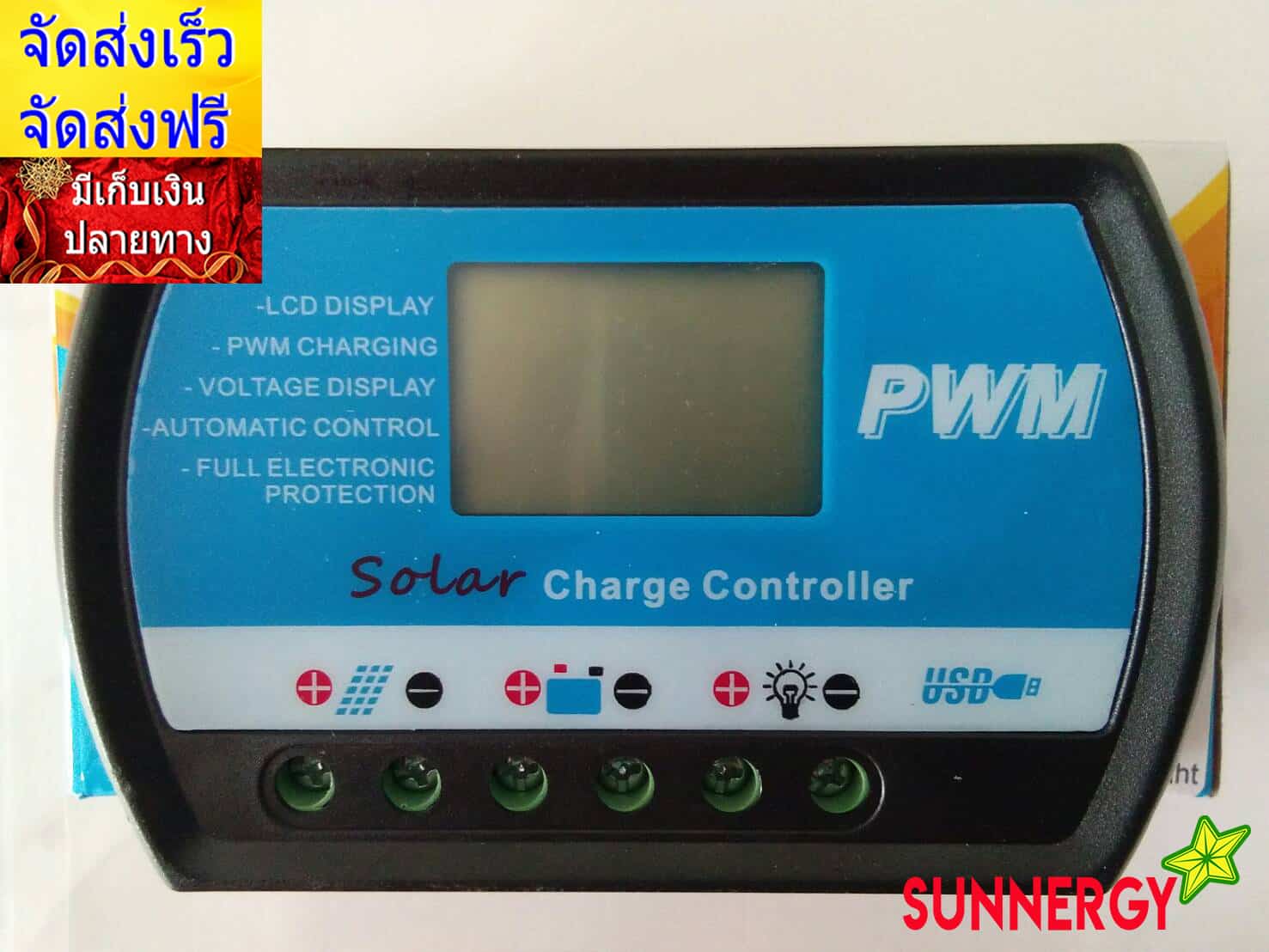

Product Display
