คำอธิบาย

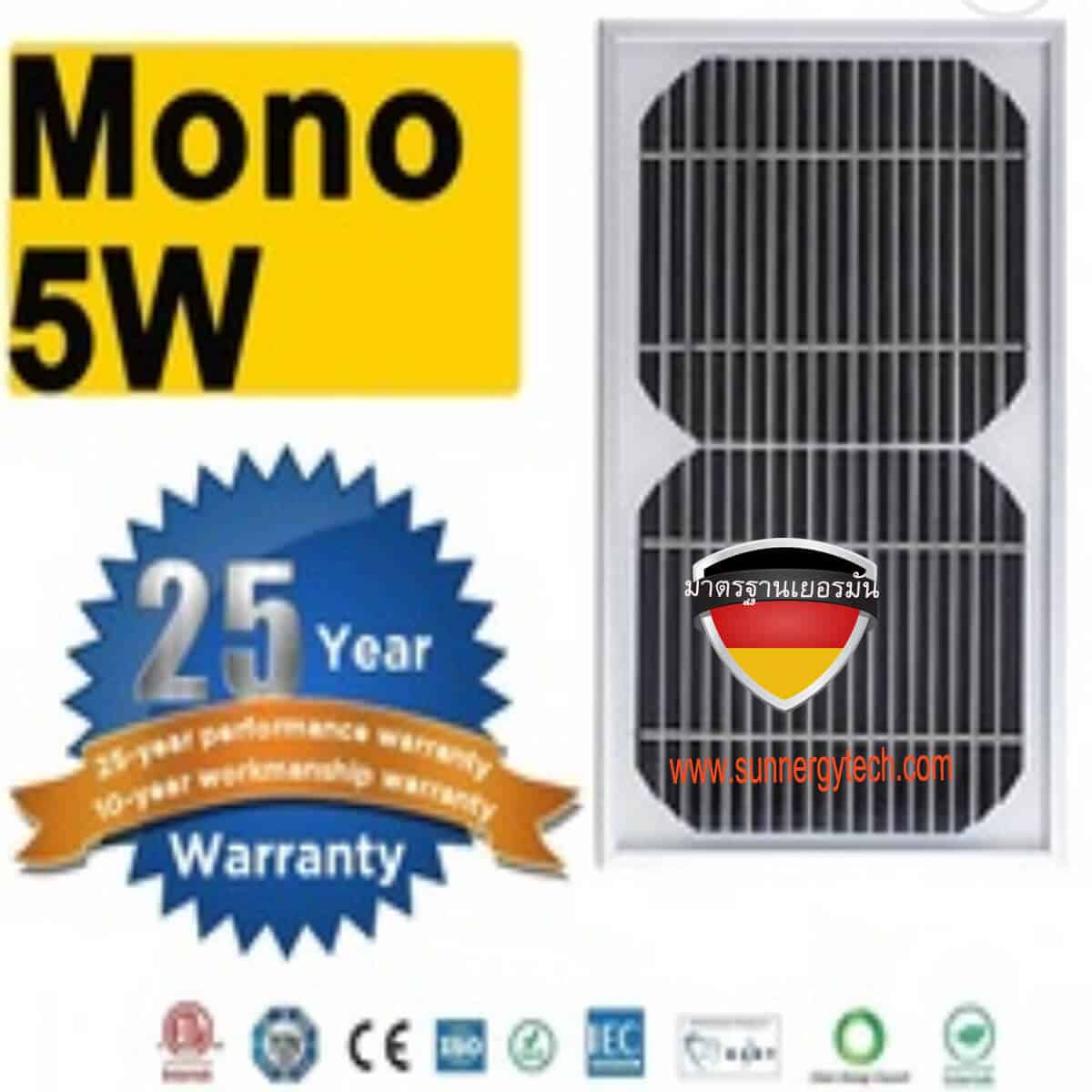

แผงโซล่าเซลล์โมโน 5 วัตต์
| Model | STC-SPM5W | STC-SPM10W | STC-SPM15W | STC-SPM20W | STC-SPM25W | STC-SPM30W |
| Rated Maximum Power at STC | 5W | 10W | 15W | 20W | 25W | 30W |
| Maximum Power Voltage (Vmp) | 17.4V | 17.5V | 17.4V | 17.5V | 17.5V | 17.6V |
| Maximum Power Current (Imp) | 0.29A | 0.58A | 0.87A | 1.15A | 1.43A | 1.71A |
| Open Circuit Voltage ( Voc) | 21.8V | 22.1V | 21.8V | 22.1V | 21.8V | 22.1V |
| Short Circuit Current (Isc) | 0.31A | 0.61A | 0.94A | 1.28A | 1.54A | 1.86A |
| Power Tolerance | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% | 0~+3% |
| STC: Irradiance 1000W/m², Module Temperature 25°c, Air Mass 1.5 | ||||||
| Mechanical Parameters | ||||||
| Cell Type | Mono-crystalline 156x156mm (6inch) | |||||
| No. of Cells | 36 | |||||
| Glass | 3.2mm, High Transmission, Low Iron, Tempered Glass | |||||
| Junction Box | IP65&IP67 Rated | |||||
| Output Cable | Section Size: 4mm² , Length: 900mm | |||||
| Frame | Anodized Aluminum Alloy | |||||
| No. of Bypass Diodes | 3&6 | |||||
| Connector | MC4 Compatible | |||||
| Working Conditions | ||||||
| Maximum System Voltage | DC 1000V(IEC) / 600V(UL) | |||||
| Operating Temperature | -40°c~+85°c | |||||
| Maximum Series Fuse | 15A | |||||
| NOCT | 45±2°c | |||||
| Application Class | Class A | |||||
| Temperature Coefficient | ||||||
| Temperature Coefficient of Pmax | -0.40%/°c | |||||
| Temperature Coefficient of Voc | -0.30%/°c | |||||
| Temperature Coefficient of Isc | +0.05%/°c | |||||
